80~300mesh Ultrafine Powder grinder Pulverizing Mill Machine

FOB Reference Price:Get Latest Price
US $10,000-90,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Pulverizer
Product Type:
Detergent Powder
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
LC
Model Number:
WFJ
Voltage:
220~380
Power(W):
15~120
Dimension(L*W*H):
5*1*3
Weight:
1T
Certification:
ISO
Warranty:
12 month
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plastic film wrapped around & packed in a wooden case.
Port
Shanghai
Lead Time :
Shipped in 15 days after payment

Fine Powder Pulveriser Machine, powder pulverizer, powder pulveriser, powder mill, powder grinder.



1. Consist of pulverizing unit, classifying unit, discharging unit, de-dusting unit, controlling box.



2. Pulverizing unit(high speed rotating pulverizing discs, gear ring, motor, etc.). Classifying unit(classifying impeller, guide ring, classifying motor, etc.). Discharging unit(cyclone, rotary discharging device, discharging motor, etc.). De-dusting unit(filtering bags, blower, impulse components, etc.)

Pulverizing discs made from high-speed steel(wear-resisting, with long using time).



3. Classifying motor is frequency controlled, makes classifying impellers speed adjustable, by changing the speed of impeller to get a different size final powder.



4. Pulverizing chamber equipped with water-cooling unit and air-cooling unit combined together, temperature inside the chamber is low, makes sure the materials been pulverized wont change its own characteristics because of high temperature.



5. All the unit connected by stainless steel pipes, and been sealed by clamps. Easy dismantling and convenient for cleaning.





Technical Specifications:

Model

WFJ-15

WFJ-30

WFJ-60

WFJ-80

WFJ-100

Production Capacity

(kg/h)

10-200

30-800

50-1200

200-1500

300-1800

Input size

(mm)

<10

<10

<10

<10

<10

Output Size
(mesh)

80-500

80-500

80-500

80-500

80-500

Power (KW)

13.5

46

84.15

114

134

Main Speed(r/min)

~6000

~3800

~2800

~2300

~2000

Weight(kg)

850

1500

3200

3800

4000

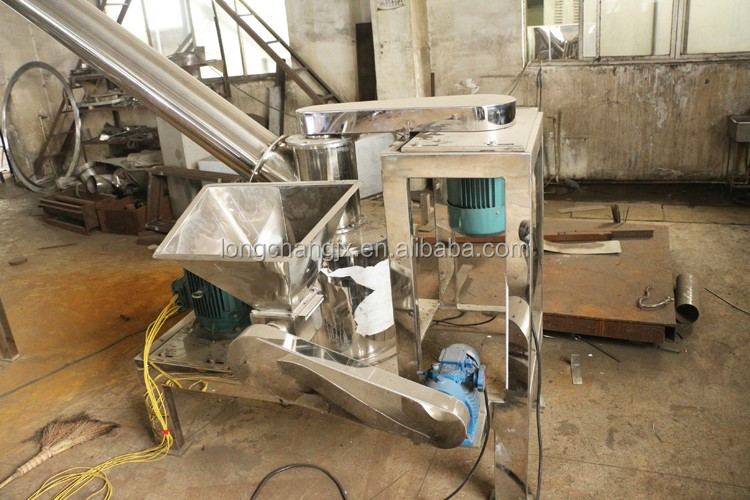

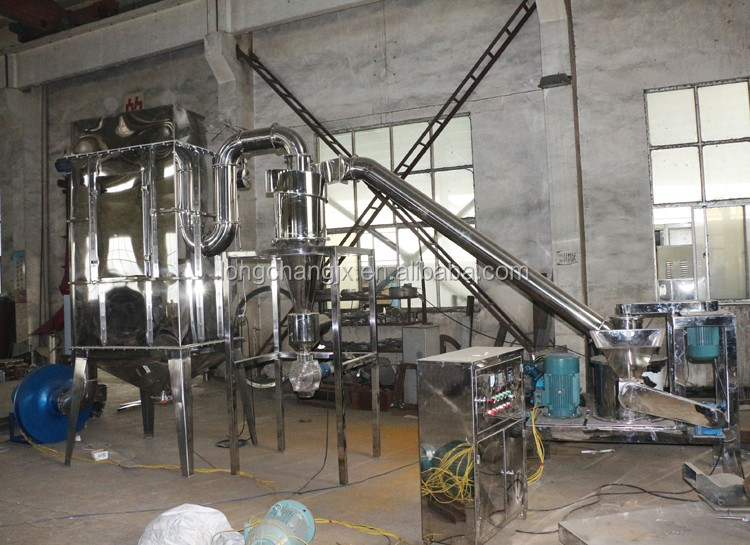

Photos of this fine powder grinder mill machine:

IMG_3847



IMG_3854



IMG_3850



Video of this fine powder grinder mill machine:

https://youtu.be/2234mpd1eqI





Contact us for further more details:

Tel: +86-138 1510 5810

Skype: mixingchina

WhatsApp: +86-138 1510 5810



Certificates:

-1





ISO CE
