Hot Sale Stainless Steel Plough Shear Mixer

FOB Reference Price:Get Latest Price
US $5,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Ribbon
Product Type:
Other
Application:
Powder
Additional Capabilities:
Milling
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
LC
Model Number:
LDH
Voltage:
220-415V
Certification:
ISO
Warranty:
1year
After-sales Service Provided:
Engineers available to service machinery overseas
certificate:
ISO, GMP
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
plastic film and wooden case
Port
Shanghai
Lead Time :
Shipped in 30 days after payment

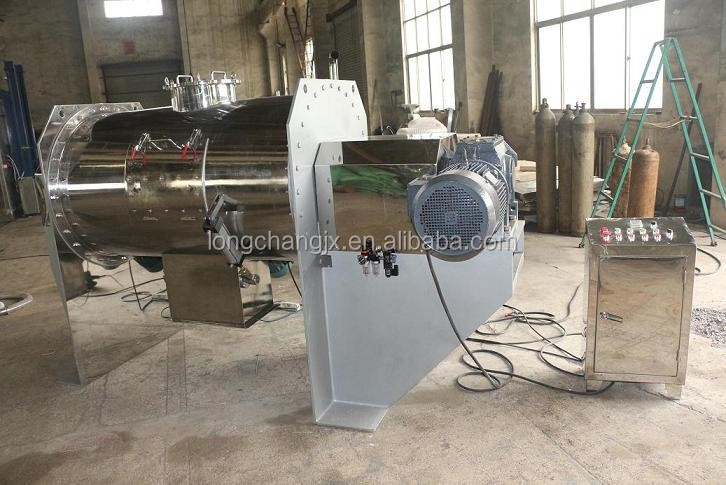

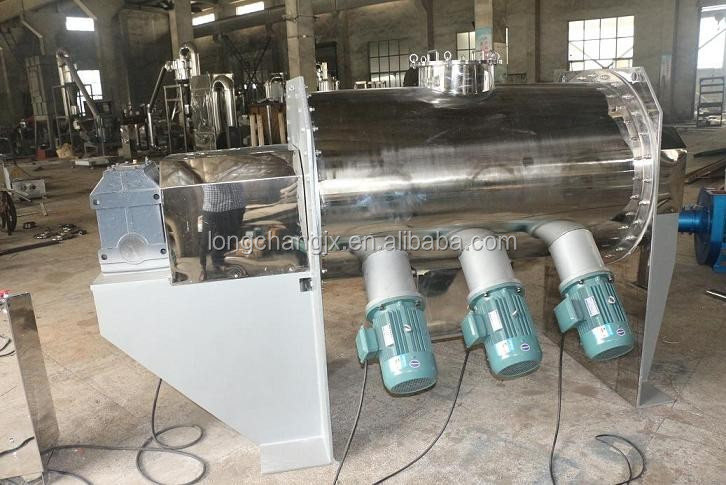

Plough Shear Mixer for powder and granule



Main Uses:

The mixer comprises transmission mechanism, horizontal cylinder, plough blades and cutting choppers, the material makes convection movement along with the cylinder and cast by flying cutter with high speed rotation when passing by it, achieving uniform mixing in the shorter time. It can apply to much mix of solid and liquid and some compound process such as creating wet powder and drying, especially to the mix of viscosity or colloid additive.

Technical Parameters

Model

Total Volume(M³)

Load factor

power(Kw)

Size(mm)× Max-diameter ×High

Equipment weight(Kg)

LDH-0.1

0.1

0.4-0.6

3

1270×865×850

430

LDH-0.3

0.3

0.4-0.6

4

2070×1050×1150

950

LDH-0.5

0.5

0.4-0.6

5.5

2180×1200×1300

1100

LDH-1

1

0.4-0.6

11

2830×1620×1550

1800

LDH-2

2

0.4-0.6

18.5

3420×1810×1758

2520

LDH-3

3

0.4-0.6

18.5

3420×2045×1983

3200

LDH-4

4

0.4-0.6

22

4200×2140×2123

4836

LDH-6

6

0.4-0.6

30

4680×2290×2448

8775

LDH-8

8

0.4-0.6

45

5560×2390×2608

9360

LDH-10

10

0.4-0.6

55

5140×2390×2850

9750

LDH-12

12

0.4-0.6

55

5720×3110×2960

10660

LDH-15

15

0.4-0.6

75

5920×3280×3140

11050

 IMG_3841







IMG_3840
